R07 Series

R07 Series Catalog
The R07 series realizes high-grade processing of hard, brittle materials, such as glass, quartz and ceramics. It also has a wide range of bonds to support various needs.
A new bond material was developed for the resin bond blade R07 series to match the characteristics of the material that will be processed. With the newly develop bond range, it is possible to satisfy both high-grade and high-speed processing.

Features
  • High processing quality for cutting of hard, brittle materials
  • High-speed processing of hard, brittle materials is possible

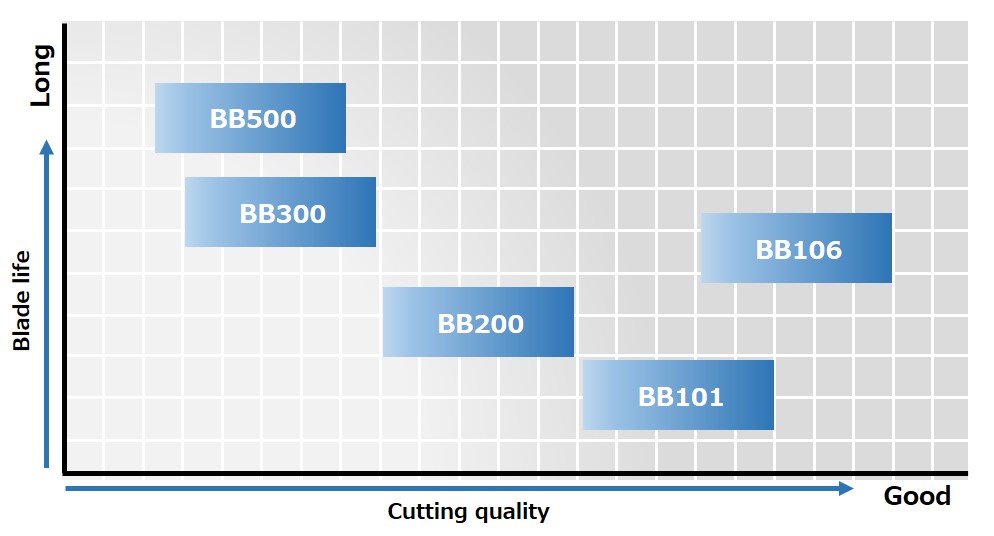

Bond comparison
Applicable Workpieces
glass, quartz, ceramics, etc.

Applicable Machines
  6000 Series and 600 Series fully automatic dicing saws
3000 Series, 300 Series, and 500 Series automatic dicing saws

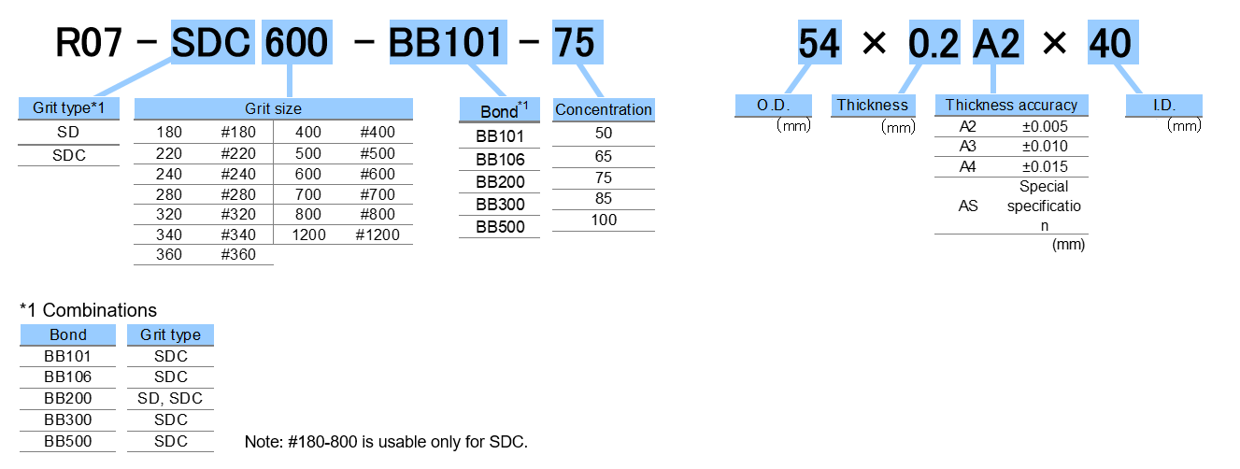

Specifications


Standard specification range by grit size

Experimental Data
Borosilicate glass cutting process (BB101 bond)
Achieves smaller chipping than the existing blade for both the front and backside, and longer blade life.
Workpiece : Borosilicate glass 0.7 mmt
Blade : New: R07-SDC600-BB101-75
Current: P1A851 SD600R10MB01
Spindle revolution : 20000 min-1
Feed speed : 10 mm/s
Size : 54 x 0.1 x 40 mm
Quartz cutting process (BB200 bond)
Achieves smaller chipping than the existing blade for both the front and backside, and longer blade life.
Workpiece : Quartz 1.1mmt
Blade : New: R07-SD400-BB200-75
Current: P1A851 SD400R10MB01
Spindle revolution : 20000 min-1
Feed speed : 5 mm/s
Size : 54 x 0.2 x 40 mm
Alumina ceramic cutting process (BB300 bond)
The chipping is about the same for both the front and backside as the existing blade, however it achieves longer blade life.
Workpiece : 96% Al2O3 0.5 mmt
Blade : New: R07-SDC600-BB300-75
Current: P1A851 SDC600R10MB01
Spindle revolution : 20000 min-1
Feed speed : 2 mm/s
Size : 54 x 0.1 x 40 mm
