GF01 Series

 GF01 Series Catalog
Improved Grinding Performance and Consistency

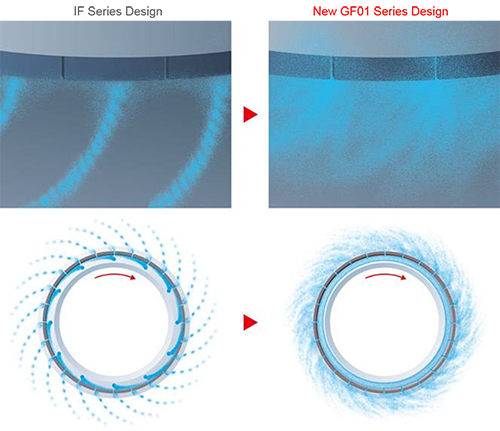

Grinding Wheel GF01 Series The newly developed GF01 Series in-feed grinding wheels feature a special aluminum base unique to DISCO. This base delivers grinding water even more efficiently than that of the IF series, resulting in highly consistent processing and optimized wheel life.

Features
  • Special wheel base delivers grinding water in a highly efficient manner
  • Bond selection is identical to that of IF Series, making transition easy
  • Series offers highly precise grinding results and exceptionally consistent grinding performance
  • Uses packaging made with environmentally-friendly PP or ABS resin

Rough grinding
Handles a variety of materials, including oxide and nitride layers, and realizes consistent processing results.
VS : Standard bond
  BT300 : Bond realizing both good processing quality and long life
  BT100 : For Ultra-thin grinding

Fine grinding
Specially-formulated resin bonds allow for reduced depth of damage and highly dependable grinding quality.Designed for improved TTV and surface roughness, GF01 Series fine-grinding wheels combine high processing quality with optimized wheel life.
BK01 : For enhanced grinding performance
  BK02 : For reduced wheel wear
  BK04 : Standard bond
  BK09 : For high-load grinding
Applicable Workpieces
    Silicon wafers, Compound semiconductor wafers, Crystal materials for electronics components, etc.
Applicable Machines
    DAG800 Series, DFG800 Series and DFG8000 Series grinders
    DFP8000 Series polishers

Specification
Standard wheel types
  Bond selection will vary by application; please contact your DISCO representative for assistance.
