DWR1730Deionized Water Recycling Unit
DI Water Recycling System Supporting up to 60 L/min
Enhanced Cooling and Water Supply Capacity Compared with Previous Models
The DWR1730 is a DI water recycling unit that integrates DI water production, temperature control, filtration, and disposal of suspended solids such as cutting particles. By adopting the proprietary, compact, high-performance “CC Filter,” the system achieves a reduced footprint. Compared with the conventional model, DWR1722, both cooling and water supply capacities have been improved, enabling support for grinders and multi-unit connections requiring a high flow rate.
High Environmental Performance
The unit achieves a high recycling rate of 99.5% (zero cutting water drainage), significantly reducing city water consumption. Installation in cleanrooms with minimal ambient temperature fluctuation helps suppress water temperature variation. In addition, the small amount of makeup water greatly reduces the power required for temperature control.
The introduction of the DWR1730 contributes not only to environmental sustainability but also to the achievement of SDGs.
No Large-Scale DI Water Recycling Plant or Wastewater Treatment Facility Required

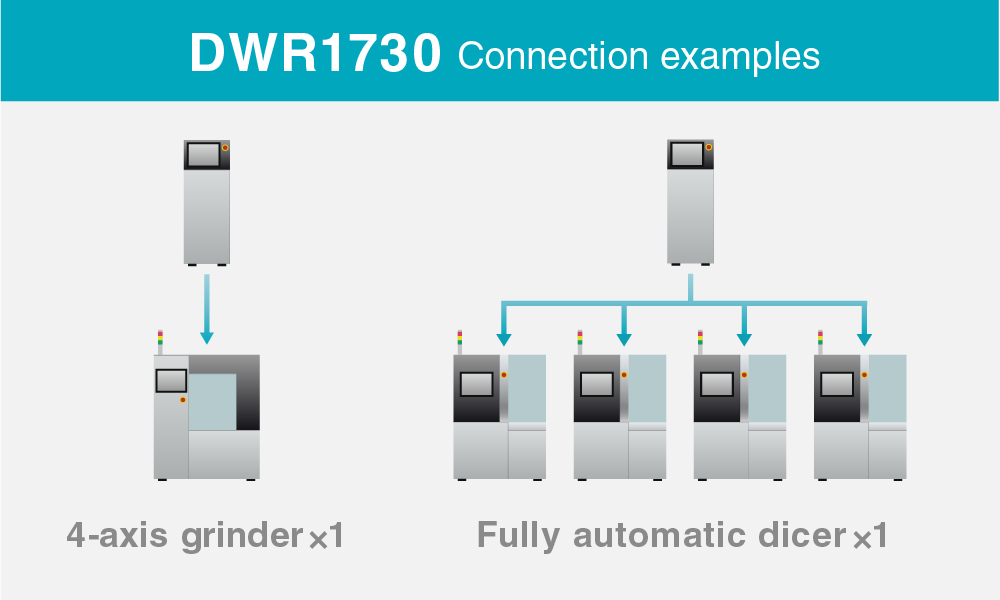

Unlike large-scale DI water recycling systems installed as part of factory infrastructure, this unit can be efficiently installed in line with the number of processing equipment. This also eliminates the need for extensive piping work for DI water supply and wastewater recovery, enabling smooth response to cutting and grinding water alarms.

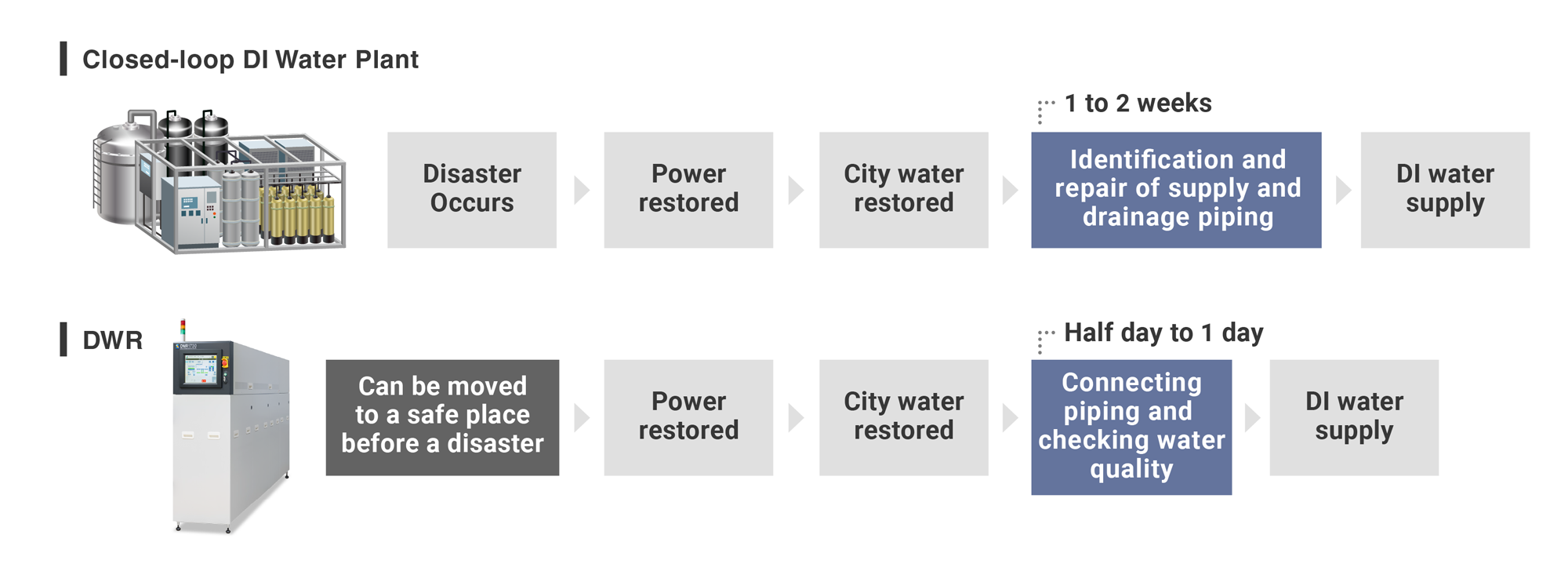

DWR as a BCM Solution
Due to the impacts of global warming, heavy rainfall and related disasters are occurring more frequently worldwide. In the event of water-related disasters such as flooding, rapid restoration of production facilities is required in order to fulfill product supply responsibilities. The DWR1730 can be easily relocated, allowing it to be evacuated in advance when disaster risk increases. Because damage from flooding can be avoided, DI water production can be restored quickly after city water service is recovered. Even in the event of a disaster, the unit supports rapid business recovery and strengthens the company’s BCM (Business Continuity Management).
Improved Maintainability*
The DWR1730 allows consumables required for DI water production to be replaced during operation. Since the processing equipment does not need to be stopped during maintenance, high productivity can be maintained.
Energy-Saving Operation*
When no cutting water output is detected for a certain period of time, the unit automatically switches to energy-saving mode. In addition, the temperature of the spindle cooling water is monitored to optimize the power consumption of the chiller unit.

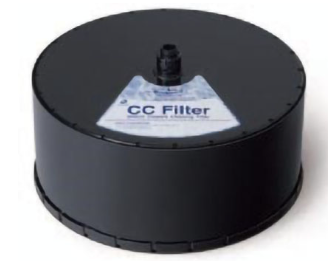

High-Performance Disposable Filter Module “CC Filter”
The DISCO-original CC Filter combines high filtration performance with long service life.
Suspended particles captured by the filter can be easily disposed of together with the filter itself.
*New feature for the DWR series
Specifications
| Specification | Unit | ||
|---|---|---|---|
| Cutting Water | Specific resistance value after processing | MΩ・cm | Greater than 12 |
| Pumping capacity | L/min | 60 | |
| Supply water | - | City water, or deionized water | |
| TOC control | - | Internal TOC reduction unit uses UV for oxidization | |
| Particle count after treatment (particle larger than 0.2 µm) |
Particles/mL | Less than 100 | |
| Temperature setting range | ℃ | 20 ～ 25 | |
| Spindle cooling water | Pumping capacity | L/min | 30 |
| Cooling capacity | W | 4000 | |
| Temperature setting range | ℃ | 20 ～ 25 | |
| Equipment dimensions (W x D x H) | mm | 550 × 2,300 × 1,656 | |
| Dry Mass | kg | 800 | |
Note:
*Please read the standard specification sheet before using the equipment.
*Please note that items and specifications may be changed for improvement without prior notice.
