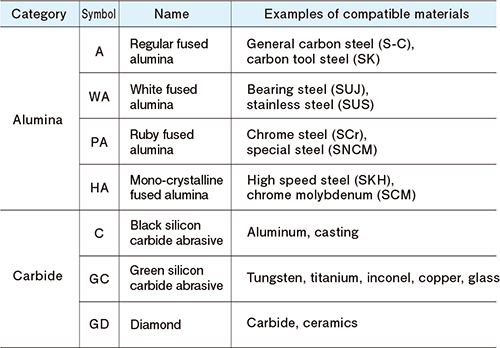

DISCO’s resinoid and rubber cut-off wheels achieve excellent cutting performance with their high elasticity, high thickness accuracy, and high resilience by controlling three elements: abrasive, bond material, and pores. In addition to the general and high precision cut-off wheels, DISCO has developed an affordable series which standardizes the most essential specifications in order to respond to the diverse needs of customers. The ultra-thin cut-off wheel, which is 0.05 thick and has a thickness tolerance of ±0.002 mm, has also been added to the lineup. These cut-off wheels support a wide range of applications for precision processing, including electronics.

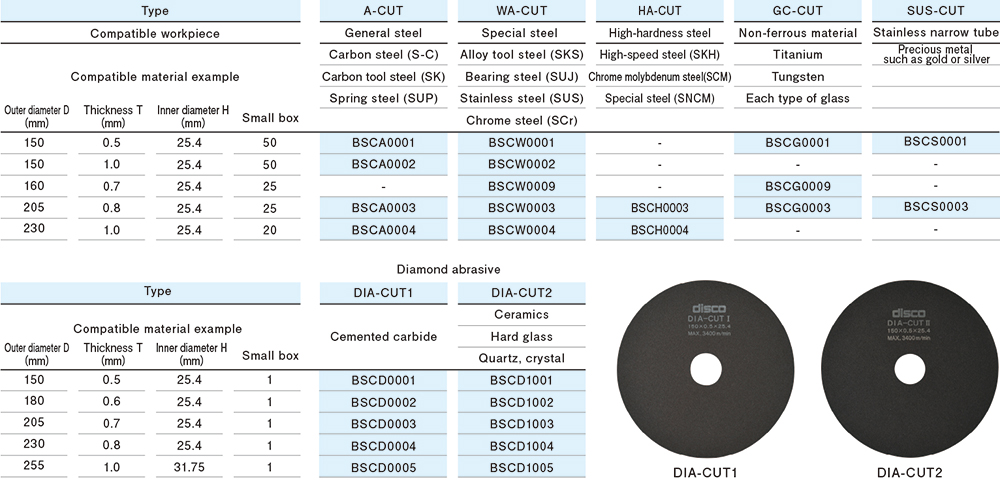

NC-S standardizes the specifications to match the frequently-used sizes and compatible materials.

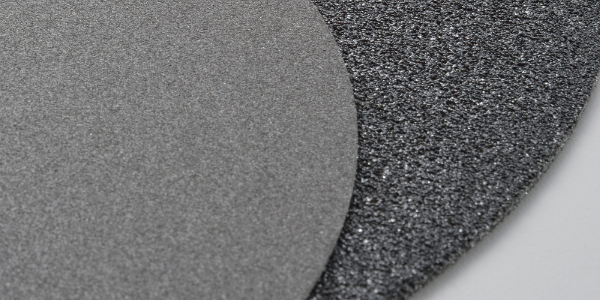

DISCO’s resinoid and rubber cut-off wheels are resilient and have excellent elasticity due to the special manufacturing method. In addition, they are able to realize high thickness accuracy.
NC-HP (GD) is a diamond resinoid cut-off wheel which is composed of diamond for the abrasive and resin for the bonding material. This cut-off wheel is excellent at processing hard and brittle materials such as carbide, ceramics, and glass, and realizes high-quality cutting performance and a long life.

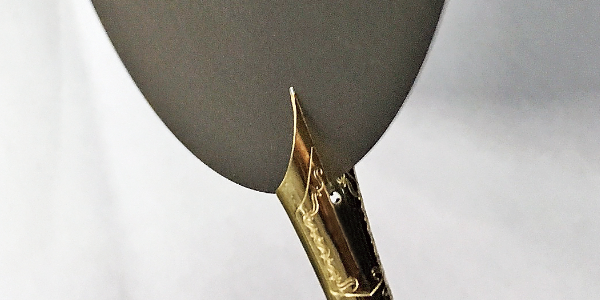

The ultra-thin cut-off wheel supports a wide range of applications for precision processing including electronics.The MIC type, which has a thickness of 0.1 mm or less (tolerance ±0.002 mm), and the UT type, which has thickness of 0.1 mm or more (tolerance ±0.01 mm), have been standardized.
Please feel free to contact us with any questions or inquiries.
Abrasive Manufacturing Department, DISCO Corporation
