DFG8830Fully Automatic Grinder

Grinder for thinning difficult-to-process materials

Φ150 mm
4 axes, 5 chuck tables

Support for the grinding of hard and brittle materials

This equipment is suitable for grinding difficult-to-process materials such as sapphire and SiC. DFG8830 is equipped with high power, high rigidity spindles and is compatible with large-diameter grinding wheels, making it possible to achieve fully automatic processing for difficult-to-process materials.

4-axis, 5-chuck table configuration

The 4-axis, 5-chuck table, and 1 turntable configuration offers solutions for a variety of applications. By selecting the optimal wheel for each of the 4 axes, this unit offers for low-damage, high-quality or high-productivity processing for a wide range of applications.

Grinding of wafers with supporting substrates

DFG8830 is compatible with workpieces bonded to substrates such as glass or ceramic. This equipment supports substrate sizes from Φ5 to 8-inch and workpieces with substrates up to a total thickness of 3.5 mm.

Small footprint

Optimal arrangement of the spindles and handling systems has resulted in a compact footprint of 3.5 m², despite boasting an all-in-one, 4-axis, 5-chuck table configuration.

User friendly operation

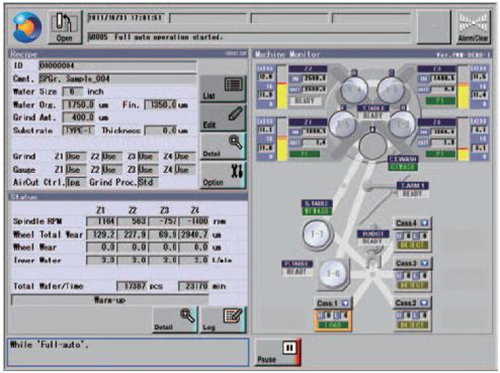

The intuitive icon-based GUI touch panel allows simple operation and on-screen step-by-step visualization of the processing stages. Also, with support for up to four cassettes, the cassette replacement frequency and equipment operation workload can be reduced.

Work Flow System

The robot pick removes the wafer from the cassette and places it on the positioning table, where centering takes place.
The transfer arm places the wafer on the chuck table.
Z1-axis grinding
Z2-axis grinding
Z3-axis grinding
Z4-axis grinding
The transfer arm removes the wafer from the chuck table and places it on the spinner table.
Cleaning and drying
The robot pick returns the workpiece to the cassette.

Specifications

Specification		Unit
Supported workpiece size		-	Φ4, 5, 6 inch
Substrate Diameter		-	Φ5, 6, 8 inch
Grinding method		-	In-feed grinding with wafer rotation
Grinding wheel		-	Φ300 mm Diamond Wheel
Spindle	Rated output	kW	6.3
Spindle	Rotation speed range	min^‐1	1,000 ～ 4,000
Equipment dimensions (W x D x H)		mm	1,400 × 2,500 × 2,000
Equipment weight		kg	Approx.6,000

*Product appearance, features, specifications, and other details may change due to technical modifications.
*Please read the standard specification sheet thoroughly before use.

Product Lineup



Machine type
Spindle
C/T
Machine dimentions（W × D × H）
Machine weight（kg）


DAG810	DAG811	DFG8340	DFG8540	DFG8541	DFG8560	DFG8640	DGP8761
Automatic	Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic
1	1	1	2	2	2	2	3
1	1	2	3	3	3	3	4
600 × 1,700 × 1,780	600 × 1,500 × 1,800	800 × 2,450 × 1,800	1,200 × 2,670 × 1,800	1,100 × 2,800 × 1,800	1,400 × 3,190 × 1,800	1,000 × 2,800 × 1,800	1,690 × 3,315 × 1,800
1,300	1,600	2,500	3,100	3,000	4,000	3,500	6,700
