Note: This equipment has been discontinued. (Click here for information about spare parts.)

Dicing Saw for 6 × 6-inch Workpieces Designed for Compactness

Φ150 mm
Single spindle

Compatible with 6 × 6-inch Workpieces Using a User-Specified Specification

Single-axis dicing saw which is compatible with the 6 x 6-inch workpiece using a user-specified specification.

Improved usability and performance

Each model features an LCD touch panel with a graphical user interface for easy and intuitive operation. In addition, all models include auto-alignment, auto-focus, and auto-kerf check functions for enhanced productivity. The newly developed 1.5 kW spindle, which is standard on every model, features a shaft lock function for easier blade changing. A reduced-expansion spindle (option) manufactured with special expansion-resistant materials is available for even greater precision during processing.

Space Saving Design

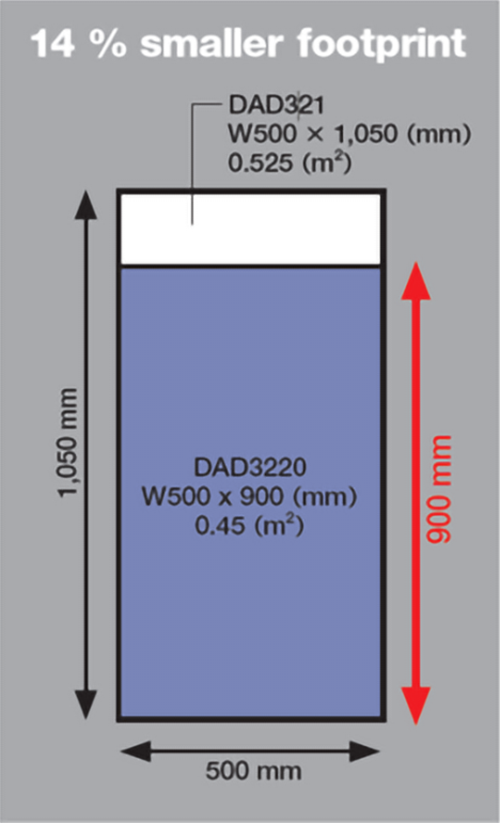

DAD3220 has a width of only 500 mm and was designed to be compact. The footprint is reduced approx. 14% compared to the existing model (DAD321).

Advanced options

The cutting water flow rate controller, programmable for each device data, helps prevent operator error while providing a stable and consistent flow of cutting water. The macro microscope allows for a greater field of view and can improve usability during alignment. A transformer and UPS can be installed on the equipment with consideration for the layout of peripheral units.

Successor equipment

DAD3221

Specifications

Specification		Unit	3220
Max. workpiece size		-	Φ6 inch / 150 × 150 mm(user-specified specification)
X-axis	Cutting range	mm	160
X-axis	Cutting speed	mm/s	0.1 - 500
Y-axis	Cutting range	mm	162
	Index step	mm	0.0001
	Index positioning accuracy	mm	0.005/160 (Single error) 0.003/5
Z-axis	Max. stroke	mm	32.2 (Φ2 inch blades)
	Moving resolution	mm	0.00005
	Repeatability accuracy	mm	0.001
θ-axis	Max. rotating angle	deg	320
Spindle	Rated output	kW	1.5
	Rated torque	N・m	0.48
	Rotation speed range	min^‐1	3,000 - 40,000
Equipment dimensions（W × D × H）		mm	500 x 900 x 1,670
Equipment weight		kg	Approx. 550

*Product appearance, features, specifications, and other details may change due to technical modifications.
*Please read the standard specification sheet thoroughly before use.

Product Lineup



Machine type
Spindle
C/T
Machine dimentions（W × D × H）
Machine weight（kg）


DAD324	DAD3221	DAD3231	DAD3241	DAD3350	DAD3351	DAD3361	DAD3431	DAD3651	DAD3660	DAD3661
Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
1	1	1	1	1	1	1	1	2	2	2
1	1	1	1	1	1	1	1	1	1	1
490 × 870 × 1,670	490 × 870 × 1,670	650 × 950 × 1,670	650 × 950 × 1,670	900 × 1,050 × 1,800	880 × 1000 × 1,800	880 × 1,000 × 1,800	730 × 900 × 1,670	790 × 790 × 1,800	1,350 × 1,200 × 1,890	1,350 × 1,200 × 1,800
420	420	550	550	1,200	1,100	1,100	600	1,040	1,500	1,550
