Featuring parallel dual-spindles, DFD6450 inherits the basic concept of the existing model, DFD651, and has been added to the DFD6000 series lineup with superior usability and processing quality. Designed to handle a wide range of dicing and grooving applications, the DFD6450 processes silicon, compound semiconductor wafers, ceramics and other materials used for electronic component applications. In addition, the DFD6450 also processes glass and other materials used for optical component applications.The DFD6450's parallel dual spindle design is unique to DISCO and offers several benefits. As the spindles are supported from the rear of the machine, they are easily accessible from the front for blade changes and other maintenance work. The design also supports specialized applications such as mounting multiple blades on each spindle for package singulation.

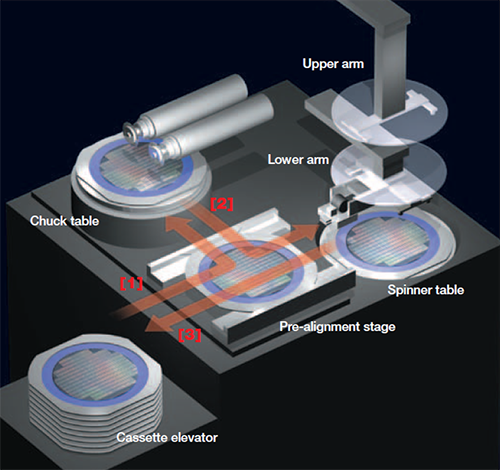

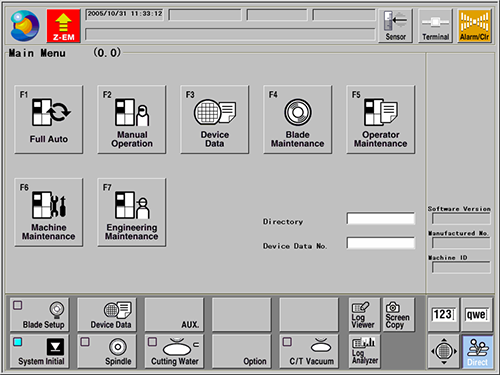

The 15-inch LCD touch panel with GUI (Graphical User Interface) allows for easy and intuitive operation. In addition, a spindle shaft-lock feature that automatically secures the spindle axis has been installed to make blade replacement quick and easy. DFD6450 also has a cutting water flow rate control feature, making it possible to set the cutting water flow rate for each set of device data.
A range of spindles supports diverse workpieces and applications.
The equipment can have a transformer, UPS, CO2 injector, or booster pump unit built-in by revising the equipment layout while maintaining an equipment footprint equal to that of the existing model. In addition, an atomizing nozzle mechanism (Japan patent no. 3410385) for the spinner section with high cleaning effect on workpieces and ionizer specifications for preventing electrostatic build up during workpiece transfer can be selected.
|Specification||Unit||1.0 kW||2.2 kW|
|Max. workpiece size||-||Φ8 inch|
|Cutting speed||mm/s||0.1 ～ 600|
|Positioning accuracy||mm||Within 0.003/250
(Single error) Within 0.002/5
|Positioning accuracy||mm||Within 0.002/30|
|θ-axis||Max. rotating angle||deg||380|
0.24 (higher torque)
|Revolution speed range||min-1||6,000 ～ 60,000､
3,000 ～ 40,000 (higher torque)
|3,000 ～ 30,000|
|Machine dimensions(W×D×H)||mm||1,120 x 1,500 x 1,600|
|Machine weight||kg||Approx. 1,400|
*Product appearance, features, specifications, and other details may change due to technical
*Please read the standard specification sheet thoroughly before use.
|Machine dimentions（W × D × H）|
|Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic|
|900 × 1,190 × 1,800||1,180 × 1,110 × 1,850||1,180 × 1,080 × 1,820||1,200 × 1,550 × 1,800||1,200 × 1,550 × 1,800||1,200 × 1,550 × 1,800||1,240 × 1,550 × 1,960||1,240 × 1,550 × 1,960||1,510 × 1,554 × 1,800||1,200 × 1,900 × 1,800|
