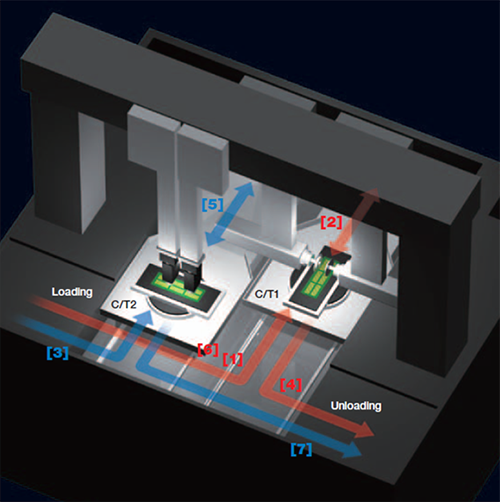

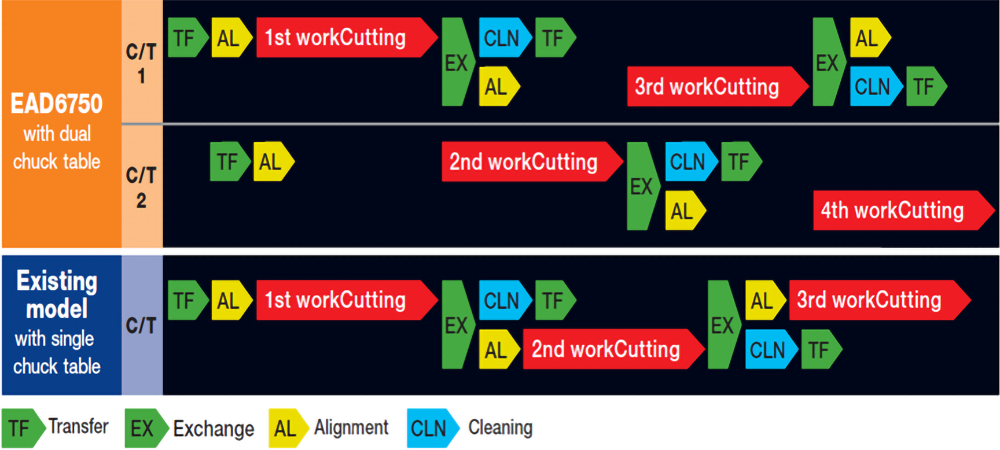

DFD6750 is equipped with a dicing engine that significantly improves the productivity. This dicing saw incorporates two chuck tables so that cutting can be performed on one table, while transfer, alignment, and cleaning can be performed on the other. This substantially reduces the processing wait time, leading to higher productivity. The return speed of each axis has also been increased for improved throughput.
An improved vacuum mechanism is used to provide stronger workpiece suction in order to reduce workpiece warpage and achieve higher processing quality.
A stainless steel cover has been adopted as a remnant prevention measure in order to reduce the risk of the bellows being damaged by the remnants. In addition, a brush unit enables easy remnant collection.
| Specification | Unit | 1.8 kW | 2.2 kW | |
|---|---|---|---|---|
| Max. rotation diameter | mm | 340 | ||
| Max. jig size | mm | 300 x 160 (Applicable workpiece size 280 x 140) | ||
| X axis | Cutting range | mm | 300 | |
| Cutting speed | mm/s | 0.1 - 1,000 | ||
| Y axis | Cutting range | mm | 300 | |
| Index step | mm | 0.0001 | ||
| Positioning accuracy | mm | Within 0.003/660 (Single error) Within 0.002/5 |
||
| Z axis | Max. stroke | mm | 19.2 (For Φ2-inch blades) | 19.9 (For Φ3-inch blades) |
| Moving resolution | mm | 0.00005 | ||
| Repeatability accuracy | mm | 0.001 | ||
| θ axis | Max. rotating angle | deg | 215 | |
| Spindle | Rated torque | N・m | 0.29 | 0.7 |
| Rotation speed range | min‐1 | 6,000 - 60,000 | 3,000 - 30,000 | |
| Equipment Dimensions (WxDxH) | mm | 1,510 × 1,554 × 1,800 (excluding scrap box) | ||
| Equipment weight | kg | Approx. 2,200 | ||
*Please read the standard specification sheet before using the equipment.
*Please note that items and specifications may be changed for improvement without prior notice.
