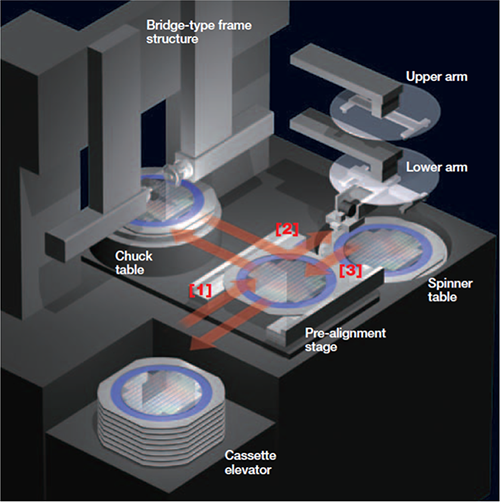

DFD6362 offers higher dual cut processing speed due to the shortened distance between the spindles. Enhanced axis mechanism improves the X-axis return speed and optimization of the parts used achieves higher speeds for the major transfer unit, resulting in a throughput improvement of approx. 7% compared to the previous model under the same conditions.
DFD6362 uses a wheel cover effective against particle adhesion based on water flow analysis in the vicinity of the processing section. In addition, a chuck table water curtain (CTWC) and atomizing nozzle for wheel cover can be selected as an option to suit specific workpieces.

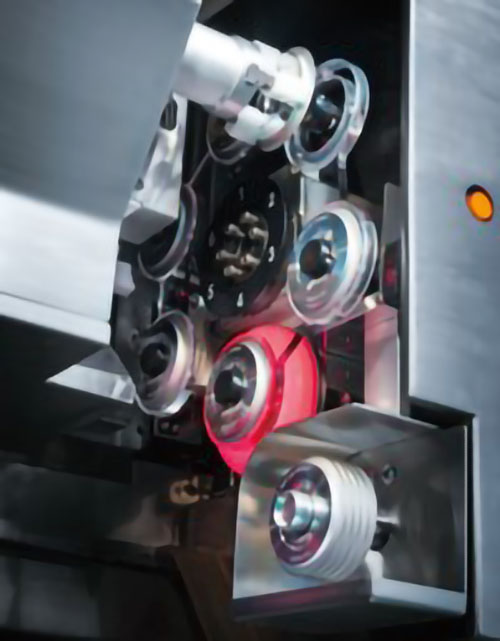

Fully automates the blade replacement and precut procedures after blade breakage and at the end of blade life and restarts processing, thus reducing operator workload. Since it takes sixty seconds to replace a blade, the ABC leads to substantially shorter downtime. The equipment scans the 2D barcode on the backside of the blade containing information on the blade type, preventing potential human errors during blade replacement.
※ optional function

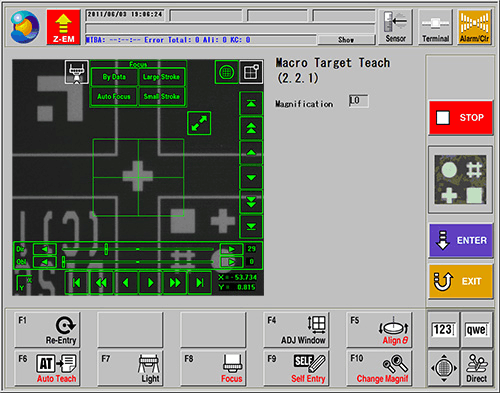

Realizes an improvement in operability by setting operation buttons on the same screen as the microscope picture, especially when performing operations such as the teach operation. Also, the software is able to display the equipment operation conditions in a clearer and more understandable way by graphically representing the equipment conditions.
|Specification||Unit||1.2, 1.8 kW, High-speed rotation||2.2 kW|
|Max. workpiece size||mm||Φ300|
|Cutting speed||mm/s||0.1 ～ 1,000|
|Positioning accuracy||mm||Within 0.002/310
(Single error) Within 0.002/5
|Z-axis||Max. stroke||mm||14.7 (For Φ2 inch blade)||14.9 (For Φ3 inch blade)|
|θ-axis||Max. rotating angle||deg||380|
|Spindle||Rated torque||N・m||0.19（1.2 kW/High-speed rotation）
|Rotation speed range||min‐1||6,000 ～ 60,000（1.2 kW/1.8 kW）
20,000 ～ 80,000(High-speed rotation)
|3,000 ～ 30,000|
|Equipment dimensions(W×D×H)||mm||1,200 × 1,550 × 1,800|
|Equipment weight||kg||Approx. 2,050|
*Product appearance, features, specifications, and other details may change due to technical
*Please read the standard specification sheet thoroughly before use.
|Machine dimentions（W × D × H）|
|Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic||Fully Automatic|
|900 × 1,190 × 1,800||1,180 × 1,110 × 1,850||1,180 × 1,080 × 1,820||1,200 × 1,550 × 1,800||1,200 × 1,550 × 1,800||1,120 × 1,500 × 1,600||1,240 × 1,550 × 1,960||1,240 × 1,550 × 1,800||1,510 × 1,554 × 1,800||1,200 × 1,900 × 1,800|
