Application processing examples
4CH_CUT is an effective cutting method to decrease the burr generated when cutting a resin substrate.

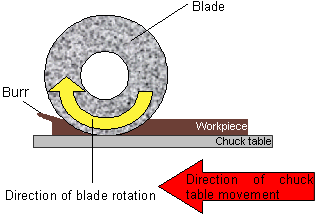

When a resin substrate is cut, burring is generated in the direction of the blade rotation.

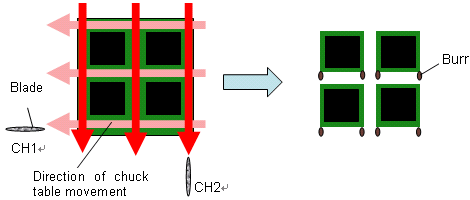

When separating into die, burring is generated in the direction of blade rotation.
In CH1, cut lines are cut again in the direction of the red arrows and burring moves in the direction shown in Fig. 3.
In CH2, cut lines are cut again in the direction of the red arrows shown in fig. 4, and burring is cleared away.
A free-of-charge test cut is performed at an application lab to confirm whether achieving the customer's needs is possible.
