Thickness control by using NCG

Application processing examples

NCG is The Non Contact Gauge.

DISCO's Fully Automatic Grinder and Grinder/Polisher usually measure wafer thickness in grinding process and control wafer thickness by contact gauge. NCG measure wafer thickness without contact, and has advantage below.

  • Avoidance wafer breakage risk by the thickness measurement
    NCG avoid the risk of breaking wafer which is weak in load, for example the cavity configuration or a wafer ultrathinning. In the case of grinding such wafers, measuring thickness by the contact gauge itself makes risk of braking by the contact gauge.
  • Good evaluation of thickness variation between wafers
    Because NCG measure only the Silicon thickness, it is possible to decrease Silicon thickness variation, caused by the tape differences or the thickness variation of a hard substrate.

Measurement in grinding process (Height gauge and NCG)

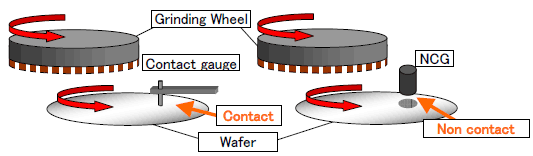

Measurement in grinding process (Contact gauge and NCG)
Fig.1 Measurement in grinding process (Contact gauge and NCG)

Advantage.1: Wafer break risk reduction

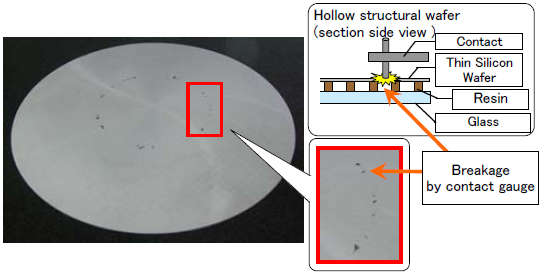

Example of brakage by contact gauge
Fig.2 Example of brakage by contact gauge

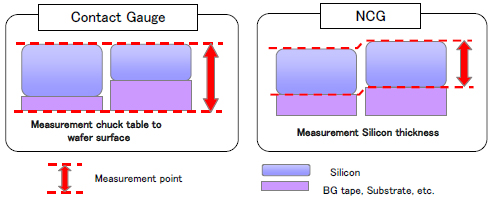

Advantage.2: Good evaluation of thickness variation between wafers

Measurement process Contact gauge and NCG
Fig.3 Measurement process Contact gauge and NCG
